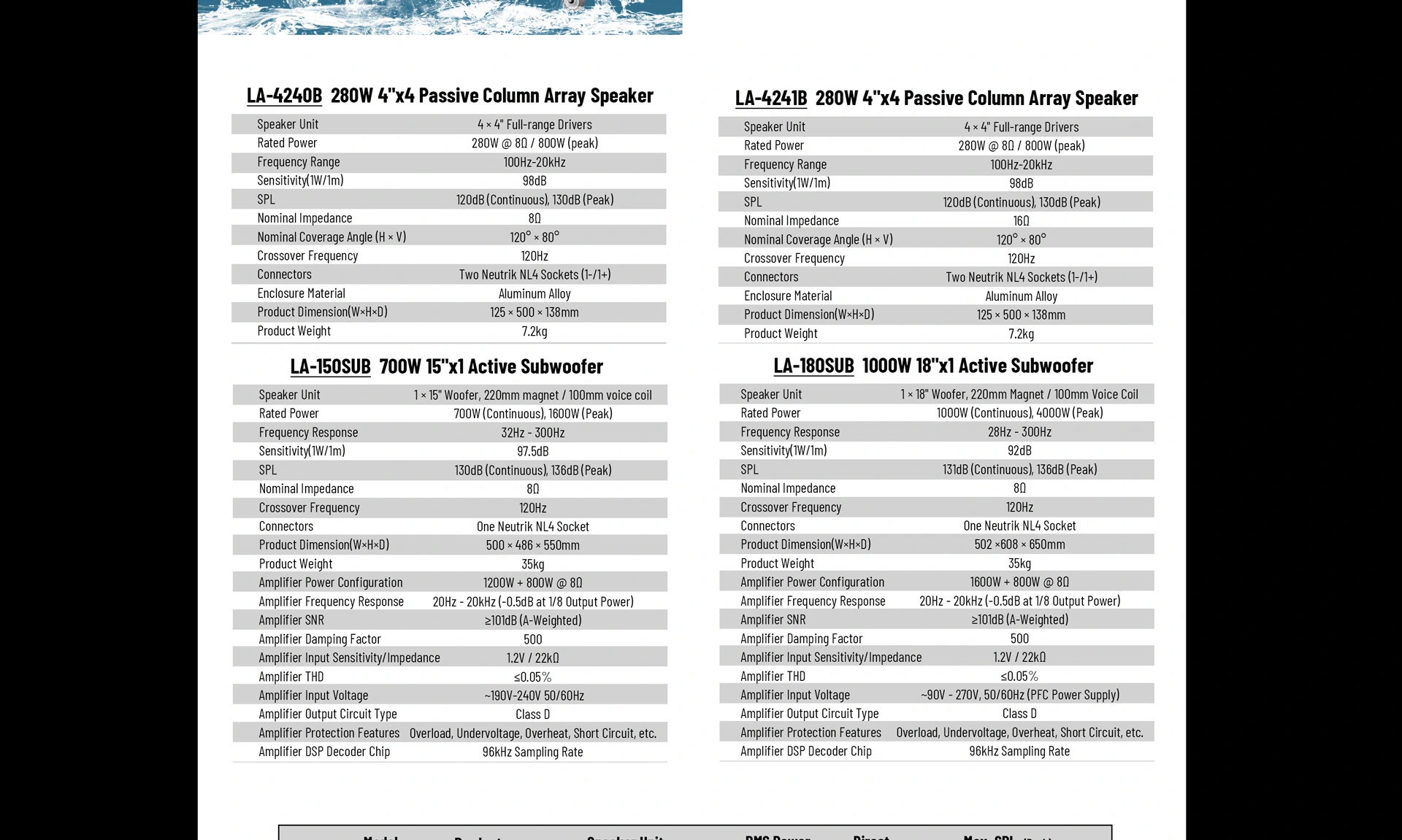

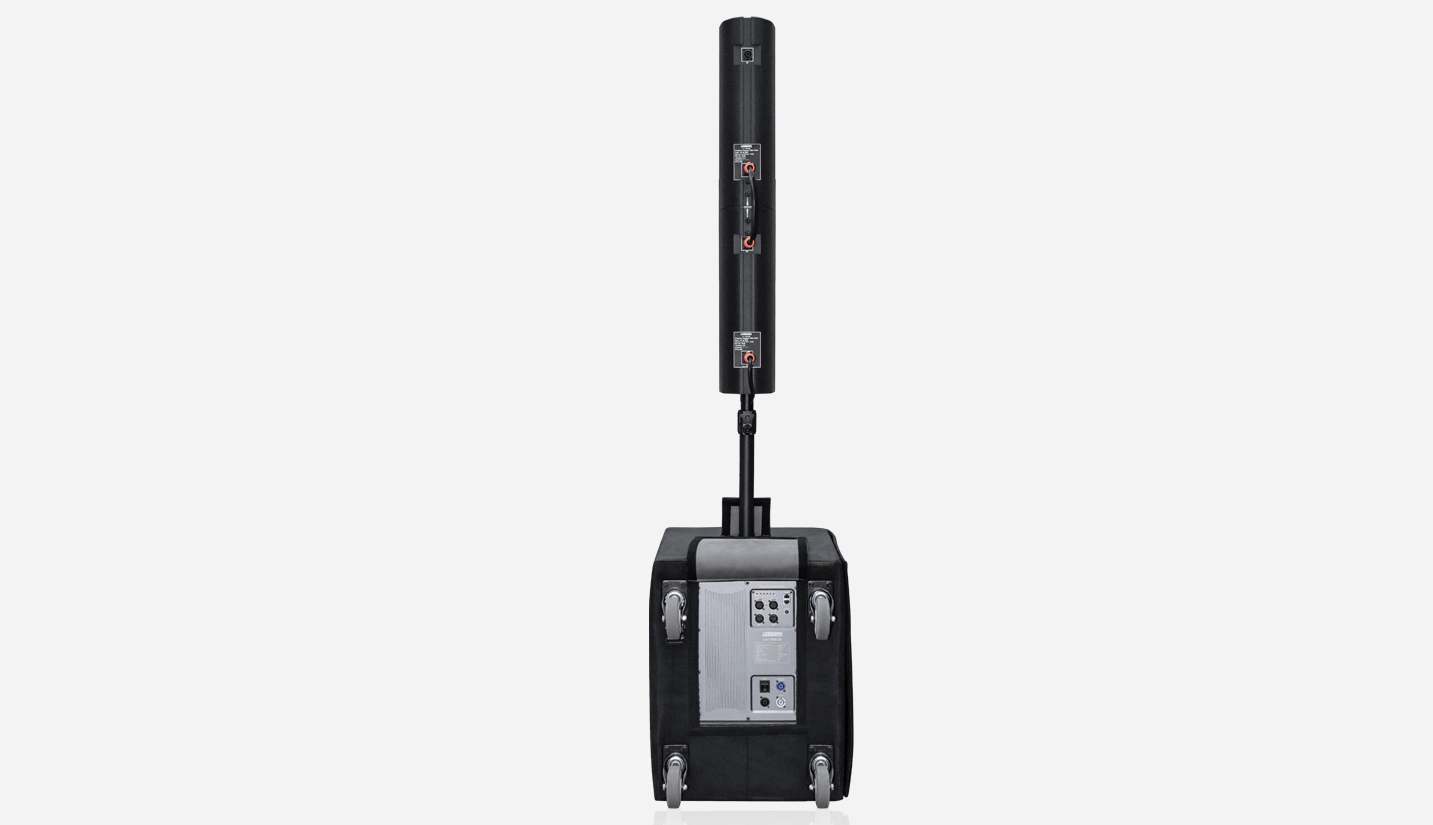

Model | LA-4240B |
Speaker Unit | 4 × 4" Full-range Drivers |
Rated Power | 280W @ 8Ω / 800W (peak) |
Frequency Range | 100Hz-20kHz |
Sensitivity(1W/1m) | 98dB |
SPL | 120dB (Continuous), 130dB (Peak) |
Nominal Impedance | 8Ω |
Nominal Coverage Angle (H × V) | 120° × 80° |
Crossover Frequency | 120Hz |

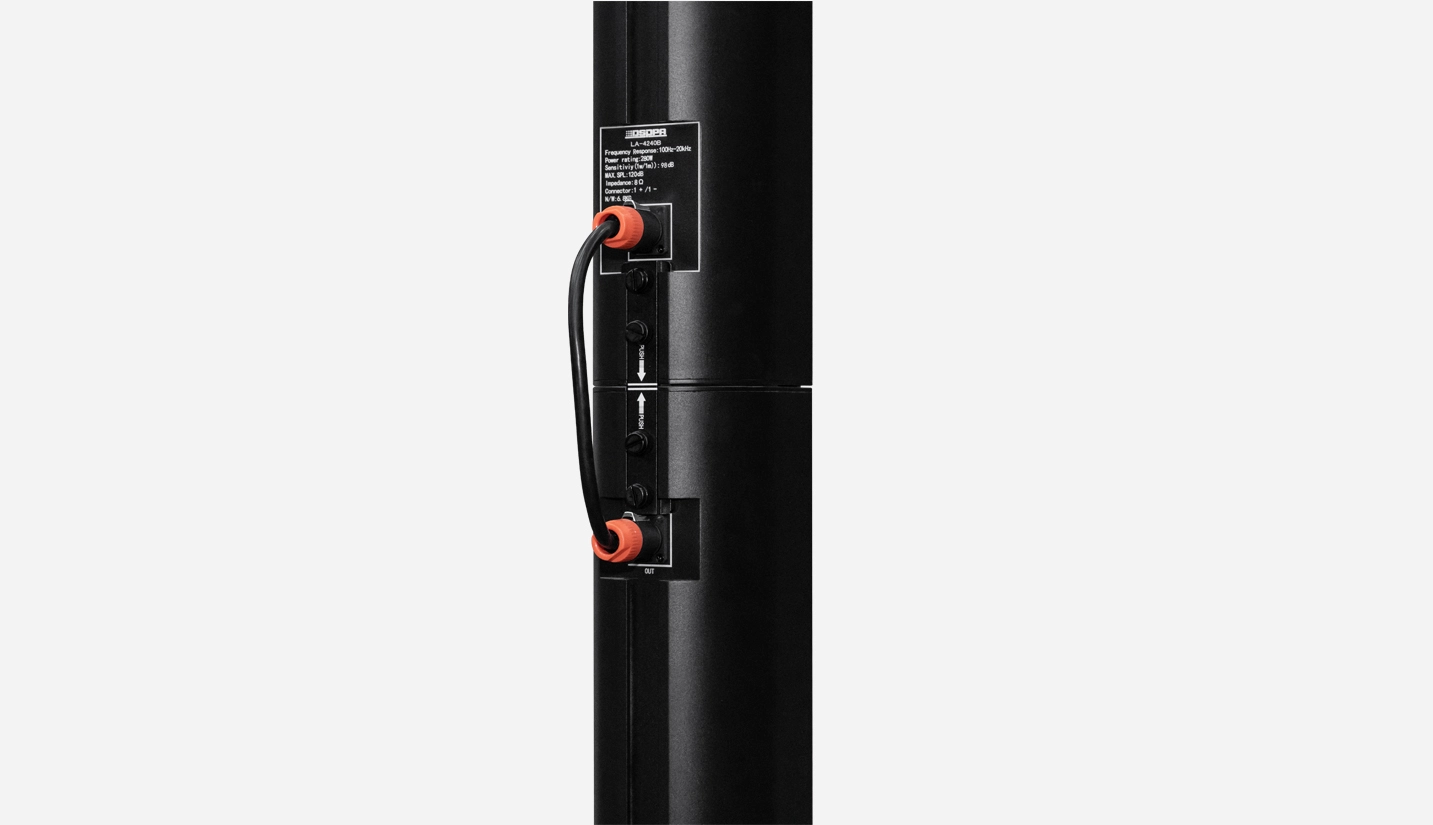

Connectors | Two Neutrik NL4 Sockets (1-/1+) |
Enclosure Material | Aluminum Alloy |
Product Dimension(W×H×D) | 125 × 500 × 138mm |
Product Weight | 7.2kg |
Model | LA-150SUB | |
Speaker Unit | 1 × 15" Woofer, 220mm magnet / 100mm voice coil | |
Rated Power | 700W (Continuous), 1600W (Peak) | |
Frequency Response | 32Hz - 300Hz | |
Sensitivity(1W/1m) | 97.5dB | |
SPL | 130dB (Continuous), 136dB (Peak) | |
Nominal Impedance | 8Ω | |
Crossover Frequency | 120Hz | |
Connectors | One Neutrik NL4 Socket | |
Product Dimension(W×H×D) | 500 × 486 × 550mm | |
Product Weight | 35kg | |

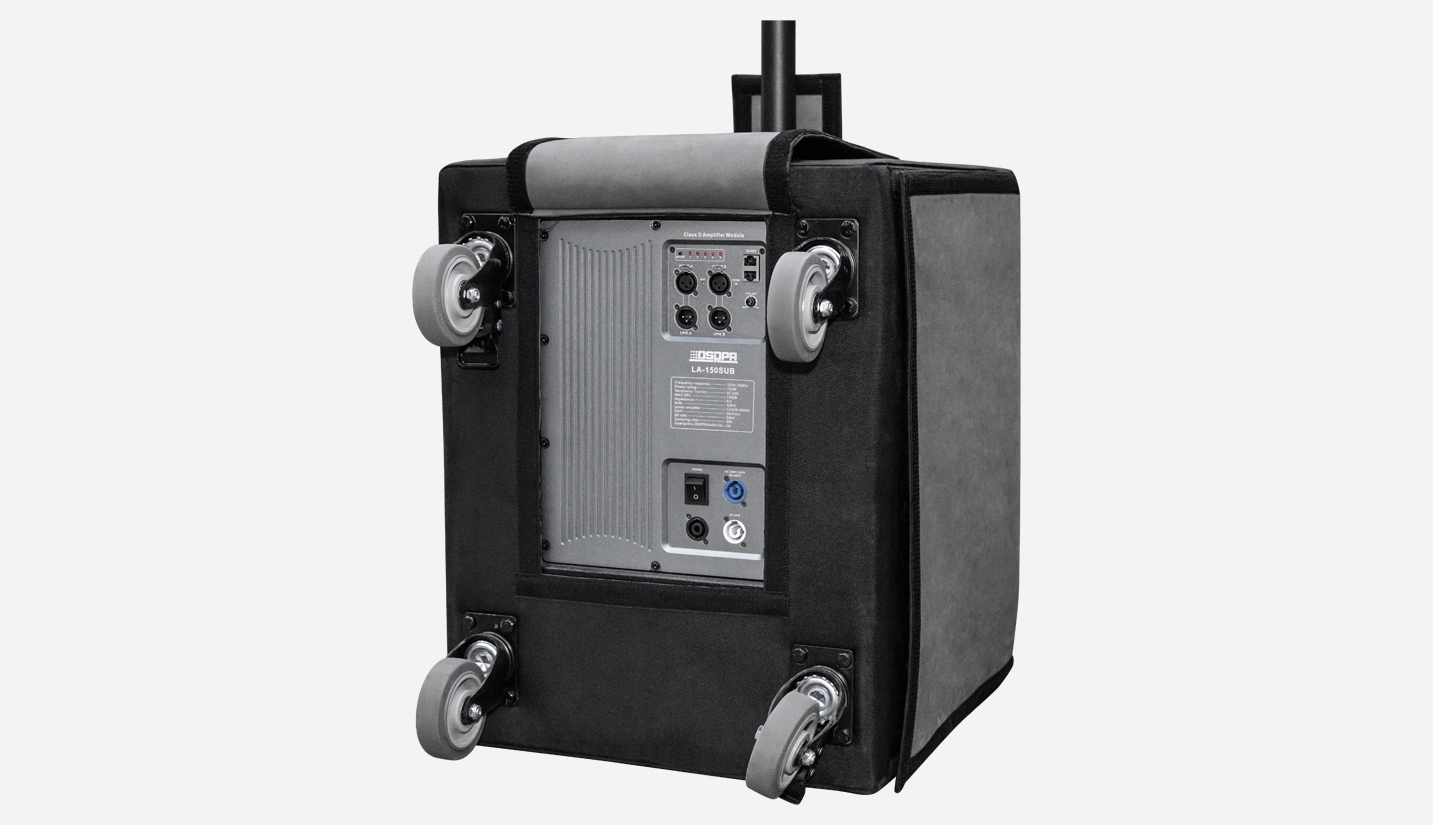

Amplifier Module | Power Configuration | 1200W + 800W @ 8Ω |
Frequency Response | 20Hz - 20kHz (-0.5dB at 1/8 Output Power) | |
SNR | ≥101dB (A-Weighted) | |
Damping Factor | 500 | |
Input Sensitivity/Impedance | 1.2V / 22kΩ | |
THD | ≤0.05% | |
Input Voltage | ~190V-240V 50/60Hz | |
Output Circuit Type | Class D | |
Protection Features | Overload Protection, Overvoltage Protection, Undervoltage Protection, Overheat Protection, Short Circuit Protection, DC Protection, etc. | |
DSP Decoder Chip | 96kHz Sampling Rate | |
