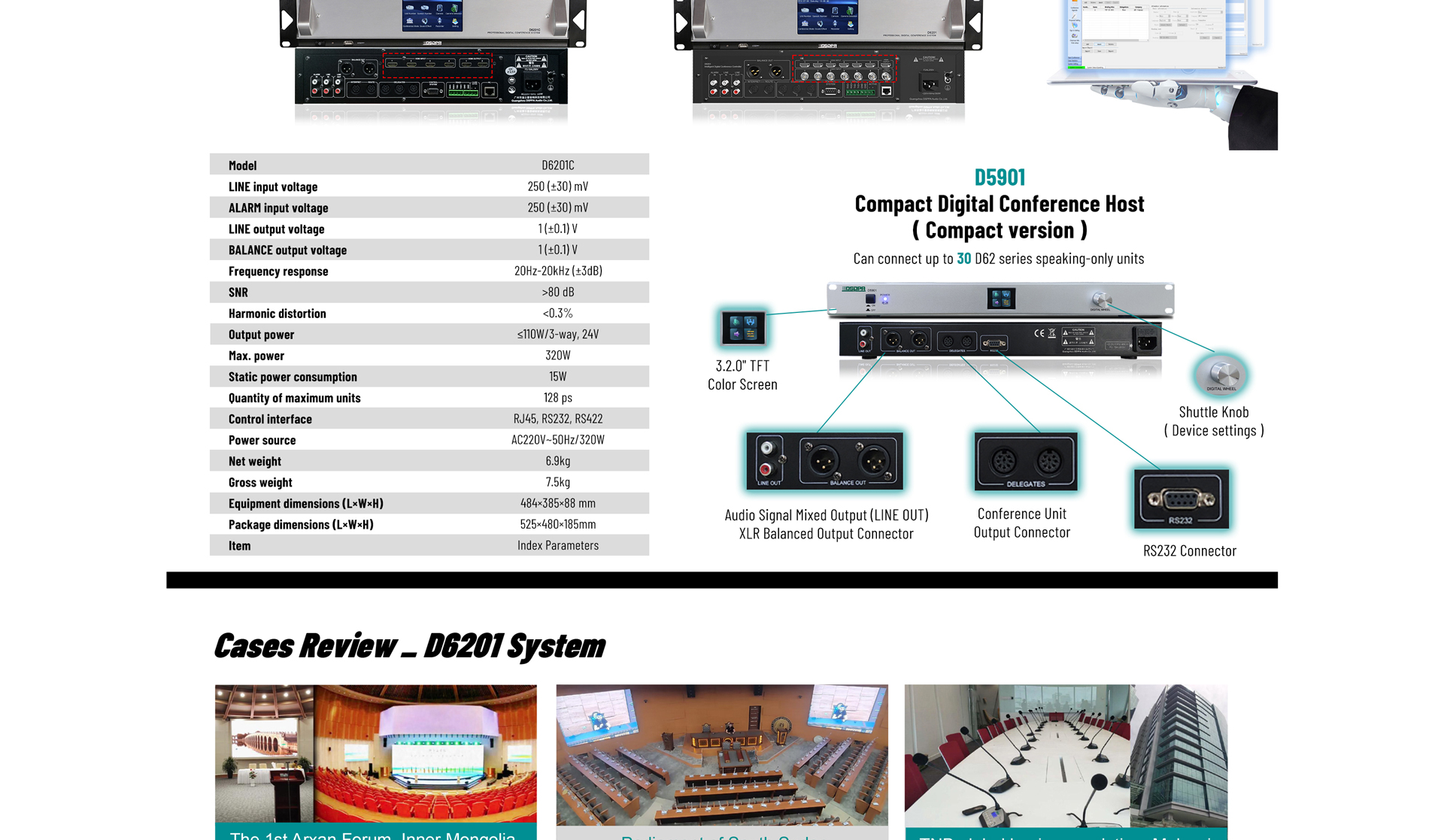

Model | D6201C |
LINE input voltage | 250 (±30) mV |
ALARM input voltage | 250 (±30) mV |
LINE output voltage | 1 (±0.1) V |
BALANCE output voltage | 1 (±0.1) V |
Frequency response | 20Hz-20kHz(±3dB) |
SNR | >80 dB |
Harmonic distortion | <0.3% |
Output power | ≤110W/3-way, 24V |
Max. power | 320W |
Static power consumption | 15W |
Quantity of maximum units | 128 ps |
Control interface | RJ45, RS232, RS422 |
Power source | AC220V~50Hz/320W |
Net weight | 6.9kg |
Gross weight | 7.5kg |
Equipment dimensions(L×W×H) | 484×385×88 mm |
Package dimensions(L×W×H) | 525×480×185mm |
Item | Index Parameters |
