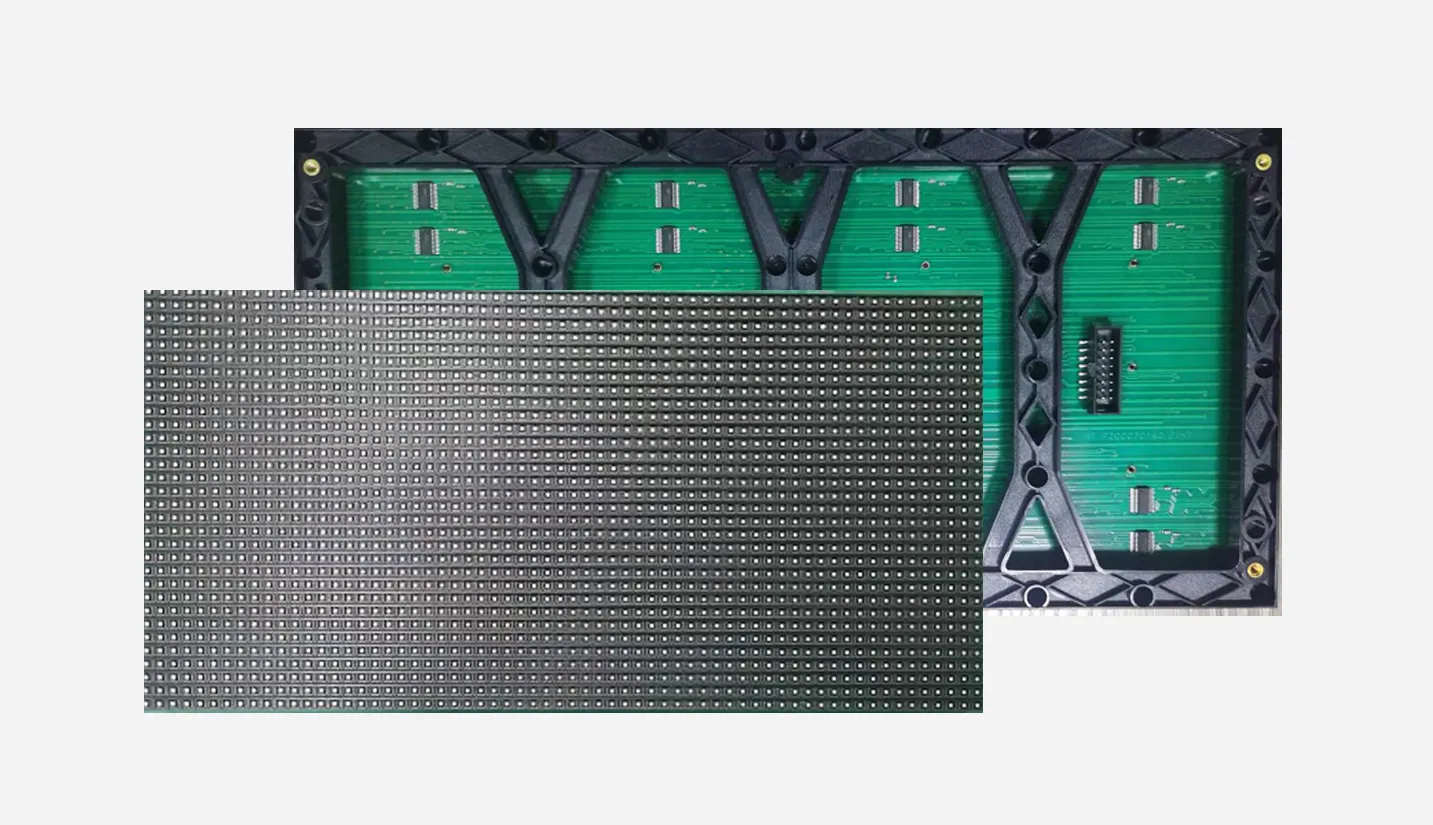

Model | DP-N475DC |
Pixel Pitch | 4.75mm |
Pixel Density | 44300dots/㎡ |
Display Color | 1R |
Modular Board Size | 304×152mm |
Module Board Resolution | 64 ×32 |
Module Board Weight | 0.3kg |
Module Dimenisons | 304mm × 152mm |
Module Resolution | 64×32 |
Module Weight | 75g |
Module Thickness | 15mm |
Modules Per Square Meter | 22 Pieces |
Peak Power | 18W per Module Board 396W/m² |
Working Power | 11W per Module Board 235W/m² |
Number of 40A Power Supplies per m² | 4 Pieces |
Scanning Method | 1/16 scan |
LED Package Type | COB Package, 2121 LED Chips |
LED Chip Brand | R: Changelight, 7×7mil |
PCB | ENIG Process (Electroless Nickel/Immersion Gold), Circuit Copper Thickness 40 μm, Via Copper Thickness 20 μm, Nickel Layer 120 μ", Gold Layer 1 μ" |
Packaging Adhesive | Epoxy Resin, High Temperature Resistant up to 135°C |
Optimal Viewing Distance | 4m |
Horizontal Viewing Angle | 170° |
Vertical Viewing Angle | 170° |
Driving Method | Constant Current |
Driver IC | FM |
Brightness | ≥600cd/㎡ |
Interface Definition | HUB08 |
Module Board Size: 304×152 mm, Module Resolution: 64×32 pixels |
|
