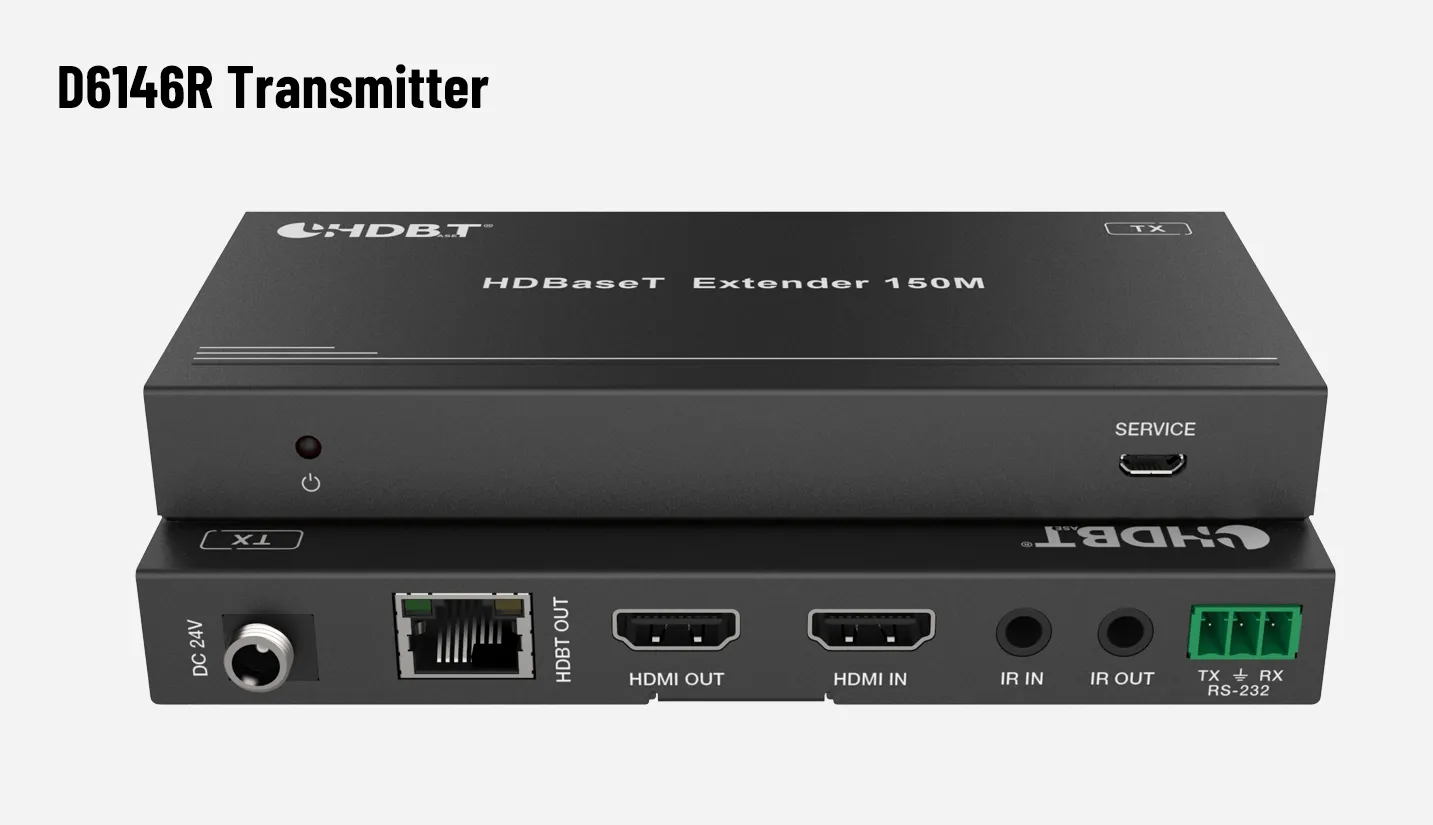

HDMI Ultra HD HDBaseT Extender (150m) - 翻译中... D6146R D6146C

HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2 / HDCP 1.4

Video Bandwidth

18Gbps

Video Resolutions

4K2K  50/60Hz  4:4:4;

4K2K  50/60Hz  4:2:2;

4K2K  50/60Hz  4:2:0;

4K2K  30Hz  4:4:4;

1080p, 1080i, 720p, 720i, 480p, 480i;

All 3D TV Formats;

All Computer Resolutions, including 1920×1200

Color Space

RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

Color Depth

8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0)

8-bit (4K60Hz 4:4:4)

HDMI Audio Formats

LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS

HD-HRA, DTS-X

L/R Audio Formats

PCM 2.0

ESD Protection

Human Body Model: ±8kV (air discharge), ±4kV (contact discharge)

Connection

Input:

1× HDMI IN [Type A, 19-pin female]

1× SERVICE [Mini-USB, firmware upgrade]

Output:

1× HDMI OUT [Type A, 19-pin female]

1× HDBT OUT [RJ45, 8-pin female]

Control:

1× IR IN [3.5mm stereo mini-jack]

1× IR OUT [3.5mm stereo mini-jack]

1× RS-232 [3-pin Phoenix connector]

Input :

1× HDBT IN [RJ45, 8-pin female]

1× SERVICE [Mini-USB, firmware upgrade]

Output:

1× HDMI OUT [Type A, 19-pin female]

1× AUDIO OUT [3.5mm stereo mini-jack]

Control:

1× IR IN [3.5mm stereo mini-jack]

1× IR OUT [3.5mm stereo mini-jack]

1× RS-232 [3-pin Phoenix connector]

Product Enclosure

Metal Enclosure

Color

Black

Dimension (L×W×H)

140mm×65mm×18mm

140mm×65mm×18mm

Weight

160g

155g

Power Supply

Input: AC 100–240V, 50/60Hz

Output: DC 24V/1A (with locking connector)

Power Consumption

9.36W

Operating Temperature

0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature

-20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity

20% ~ 90% RH (non-condensing)

Transmission Distance

4K2K: 120 meters

1080P: 150 meters

HDMI IN/OUT Cable Length

4K60: 3 meters

4K30: 10 meters

1080P60: 15 meters

Note: For optimal performance, it is recommended to use a premium high-speed HDMI cable.
