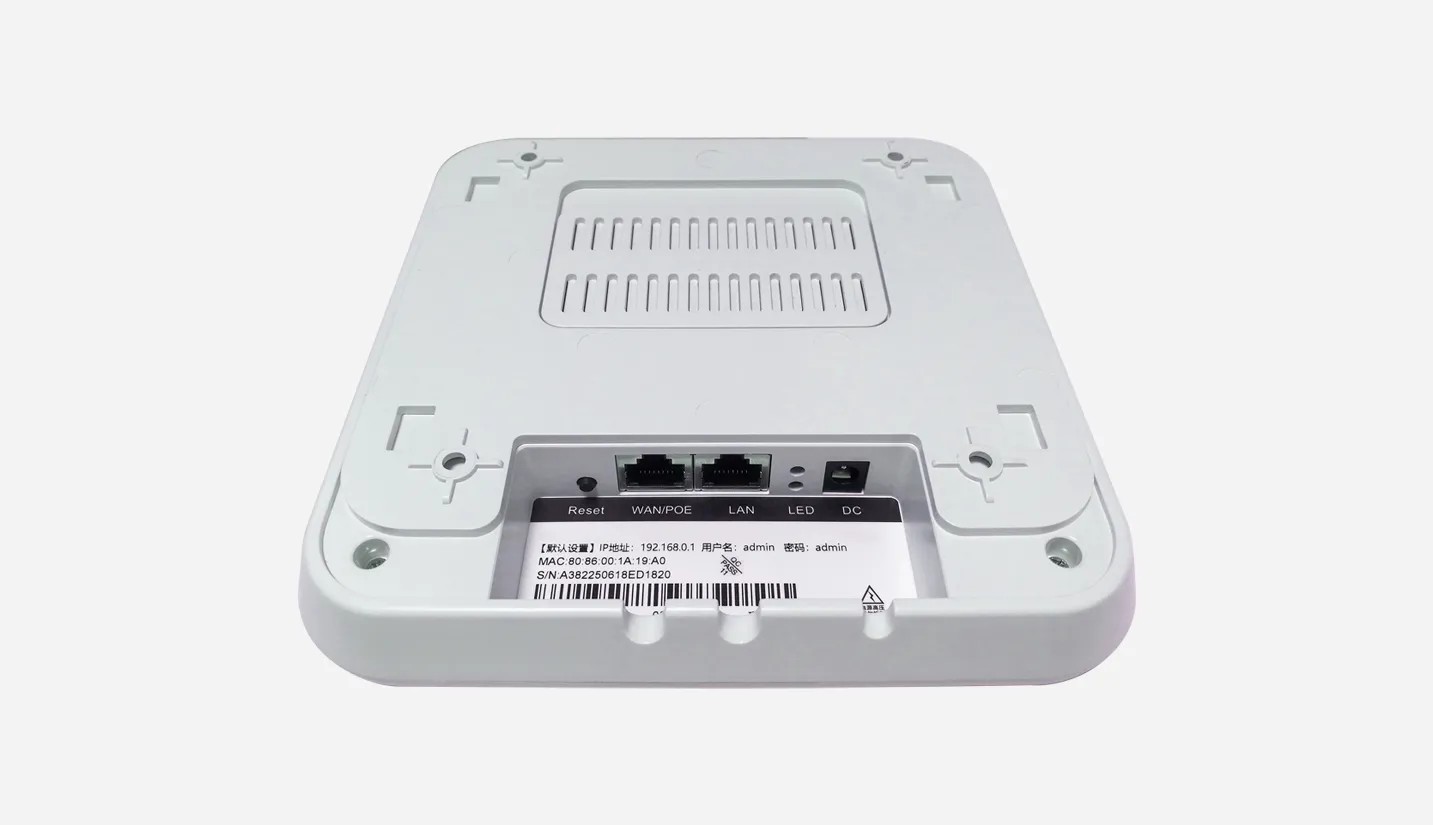

5G WiFi Access Point - 翻译中... D7341T

Hardware Specifications

CPU

MT7621DAT+MT7615D

Flash

SPI NOR 16MB

Memory:

Built-in 128MB

2.4GHz Frequency Band

2.4GHz ~ 2.484GHz

2.4GHz WiFi  Protocol

802.11 b / g / n

5GHz Frequency Band

5.150GHz ~ 5.850GHz

5GHz WiFi Protocol

802.11 a / n / ac

Built-in Antenna (2.4GHz)

2 × Antennas, Gain: 4.6 dBi

Built-in Antenna (5GHz)

2 × Antennas, Gain: 4 dBi

Maximum Data Rate

Up to 300 Mbps (2.4GHz); Up to 867 Mbps (5GHz)

Maximum Wireless Users

100 Users

2.4GHz Wireless Transmit Power

802.11b

11M

18± 2dBm

1M

20± 2dBm

802.11g

54M

17± 2dBm

6M

19± 2dBm

802.11n HT20

MCS7

16± 2dBm

MCS0

18± 2dBm

802.11n HT40

MCS7

15± 2dBm

MCS0

17± 2dBm

5GHz Wireless Transmit Power

802.11a

54M

20± 2 dBm

6M

22± 2 dBm

802.11n HT20

MCS7

19± 2 dBm

MCS0

21± 2 dBm

802.11n HT40

MCS7

18± 2 dBm

MCS0

20± 2 dBm

802.11ac VHT80

MCS9

17± 2 dBm

MCS0

19± 2 dBm

2.4GHz Receiver Sensitivity

802.11b

11M

-85dBm

1M

-94dBm

802.11g

54M

-72dBm

6M

-90dBm

802.11n HT20

MCS7

-70dBm

MCS0

-88dBm

802.11n HT40

MCS7

-68dBm

MCS0

-86dBm

5GHz Receiver Sensitivity

802.11a

54M

-72dBm

6M

-90dBm

802.11n HT20

MCS7

-70dBm

MCS0

-88dBm

802.11n HT40

MCS7

-68dBm

MCS0

-86dBm

802.11ac VHT80

MCS9

-58dBm

MCS0

-85dBm

2.4G EVM

802.11b ≤-10 dB ; 802.11g: ≤-25 dB; 802.11n: ≤-28 dB

5G EVM

802.11a ≤-25 dB ; 802.11n: ≤-28 dB; 802.11ac: ≤-32 dB

Frequency Offset (ppm)

±20ppm

Interface (WAN)

1 × 10/100/1000 Mbps WAN port with Auto‑Negotiation, supporting 48 V PoE input

Interface (LAN)

1 × 10/100/1000 Mbps LAN port with Auto‑Negotiation

External Button

Reset button (press and hold for 6–10 seconds to restore factory default configuration)

Status Indicator Light

WAN, LAN port indicator, tri-color indicator (three colors indicate: SYS – Red, 2.4G – Green, 5.8G – Blue)

Power Supply

DC2.0  12V 1A, PoE 802.3af

Max. Power Consumption

<10.5W

Product Dimension

168mm×168mm×32mm

Weight

0.36kg (Net weight)； 0.661kg (Gross weight)

Working Environment

Operating temperature: -10°C to 55°C; Storage temperature: -40°C to 70°C; Humidity: 5%–95% (non-condensing)

ESD

Air discharge ±8K, Contact discharge ±4K

Surge

Common mode 2K, Differential mode 1K
