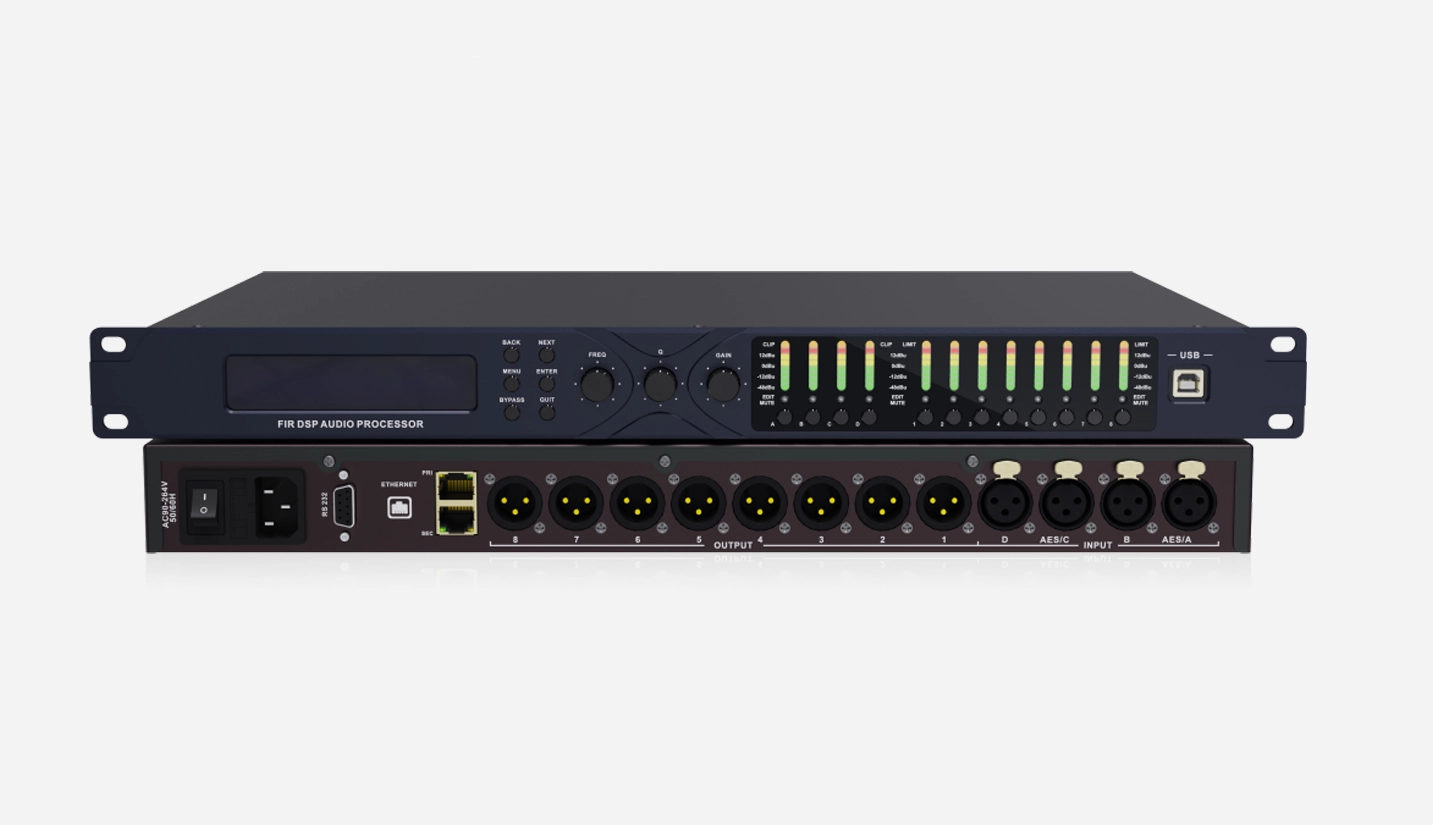

Model | DP408P |
DSP Process | |
Process | ADI SHARC 21489 450MHz |
System Delay | 2.1ms |
AD/DA | 24-bit 96KHz |
Analog Audio Inputs & Outputs | |
Input | 4 Channels Balanced |
Input Interface | XLR(Neutrik®) |
Input Impedance | 20KΩ |
Max Input level | 20dBu/Line |
Dante in/out | 4*4 Channels Optional |
Output | 8 Channels Balanced Line level |
Output Interface | XLR(Neutrik®) |
Output Impedance | 50Ω |
Audio Performance | |
Frequency Response | 20Hz-20kHz(+-0.5dB)/Line |
THD+N | -93dB(@0dBu,1kHz,A-wt)/Line |
Ground Noise | 20Hz-20kHz, A-wt, -93dBu |
SNR | 113dB(@16dBu,1kHz,A-wt)/Line |
Connect Ports & Indicators | |
USB | Type A-B, free driver |
RS232 | Serial Port Communication |
TCP/IP Interface | RJ-45 |
Indicator Light | Clip, Level, Edit, Mute |
Electrical and Physical | |
Supply | AC100V～240V 50/60 Hz |
Products Dimensions | 483mm×265mm×44.5mm |
Packaged Dimensions | 537mm×343mm×77mm |
Net Weight | 3.8kg |
Packaged Weight | 4.2kg |
Operating Temperature | -20℃-80℃ |
