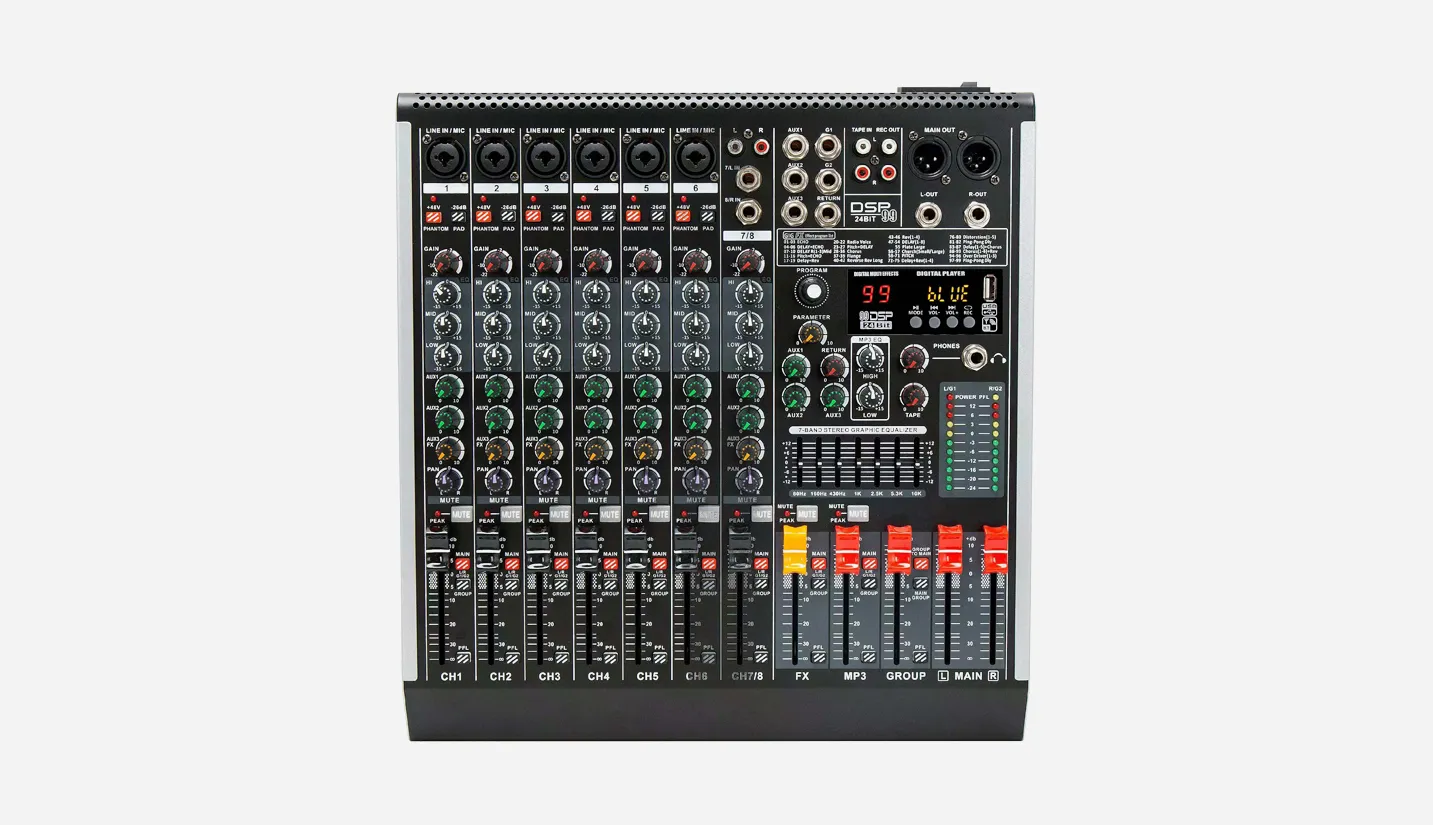

Model | CM208Y |
Input Sensitivity | -60dBm~-40dBm |
Nominal Input Level | Mic-60dBm, Line-20dBm, Effect Return(Eff Ret)-20dB, Aux In-20dB, Tape in 10dB |
Nominal Output Level | Effect Send(Eff Send)-10dB, Aux Send 0dB |
Common Mode Rejection | -17dB |
Output Voltage (Mixr Part) | 4V Max |
S/N Ratio | ≥80dB |
THD (1KHz Full Power) | Less than 0.03% (at 1 KHz) |
Frequency Response | 20Hz-20kHz ±3dB |
Headphone | 7V / 220Ω |
Parametric CQ | Hi +15dB / 12KHZ Mid +15dB / 2.5K Low +15dB / 80KHz |
Power Consumption | 30W |
Power Supply | AC 110-245V / 50-60Hz |
Product Dimension | 350×375×100mm |
