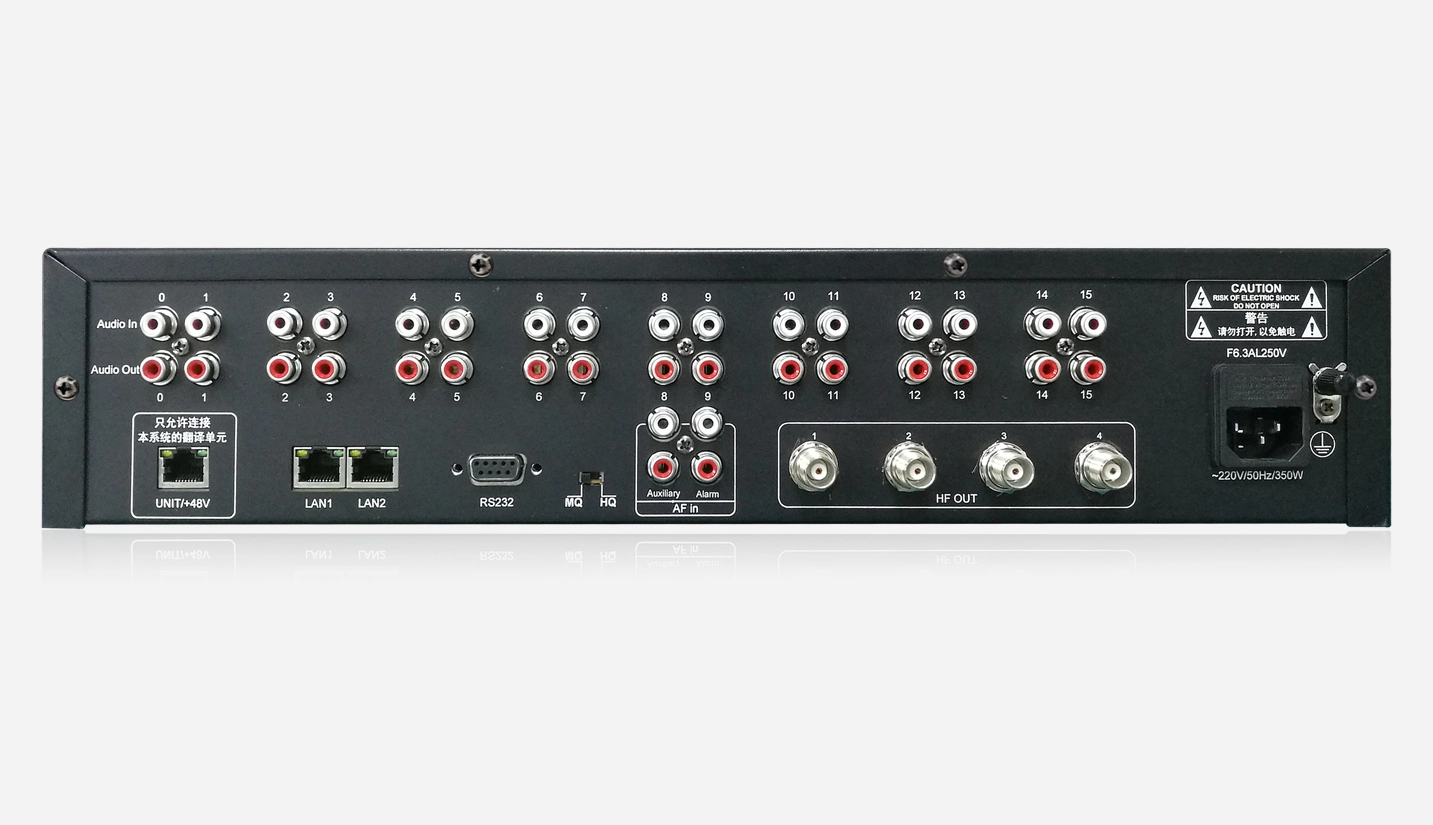

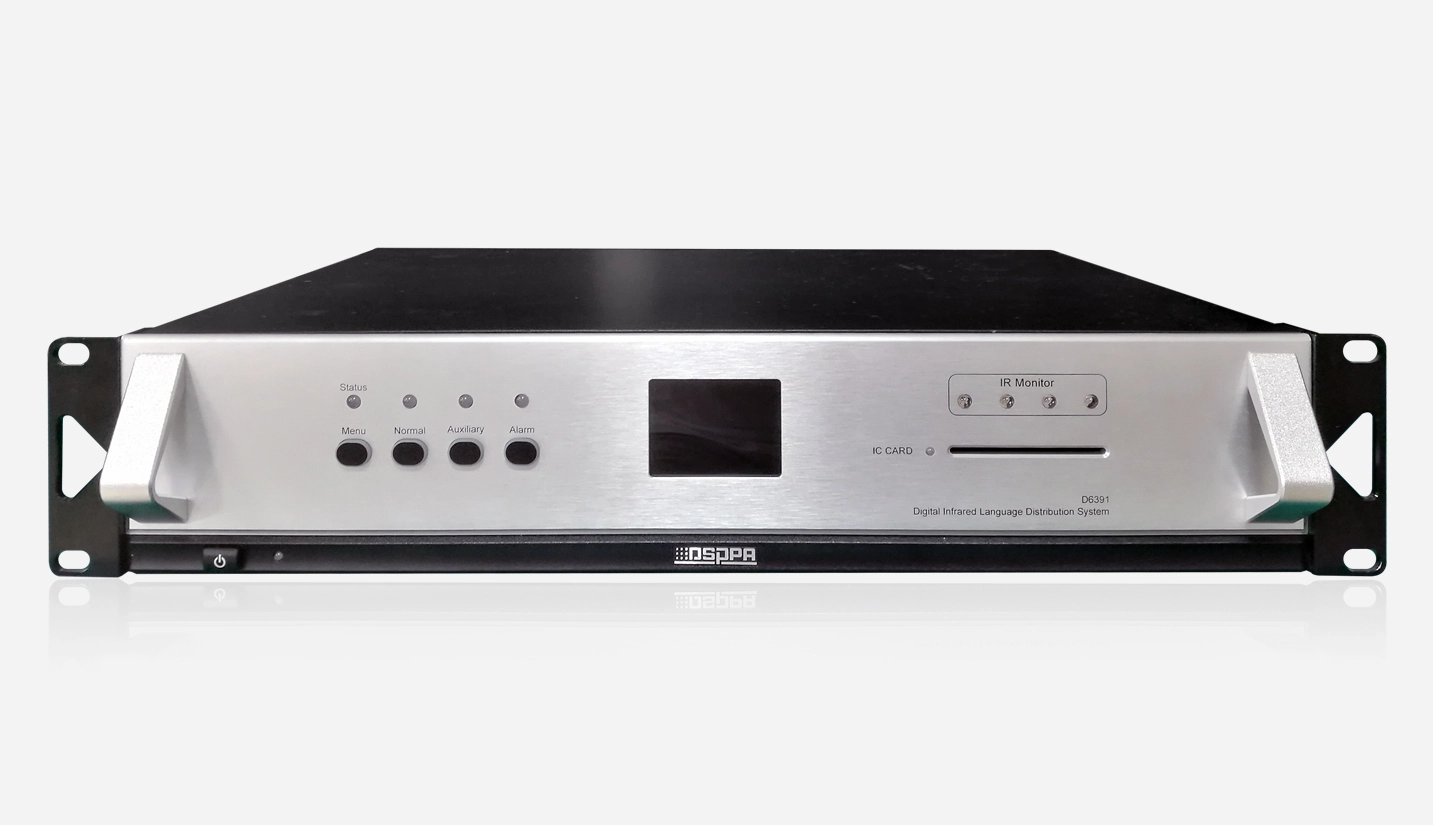

Model | D6391 |
Modulation Frequency | 2 MHz - 5MHz |
Protocol and Modulation | DQPSK |
Frequency Response | 20Hz-10kHz (-3 dB) (Standard Quality) 20Hz-20kHz (High Quality) |
Total Harmonic Distortion at 1 kHz | ＜0.05% |
Crosstalk Attenuation at 1 kHz | ＞80dB |
Dynamic Range | >90dB(A) |
SNR | >76dB(A) |
Power Consumption | 22W (No external power supply), 60W (48V PoE via network port for 5 connected Interpreter Units). |
Unbalanced Audio Input | Rated 250mV, Maximum 2.5V |
HF Output | 1 Vpp, 50Ω |
Interpreter Unit Interface | Internet Access |
Audio Input | RCA Unbalanced ×16 |
Audio Output | RCA Unbalanced ×16 |
RF Output | RF Output TNC Plug×4 |
Power Supply | AC220V/50Hz |
Product Dimension (L×W×H) | 483×385×88mm |
Package Size (L×W×H) | 525×480×185mm |
Net Weight | 6.5kg |
Gross Weight | 8kg |
