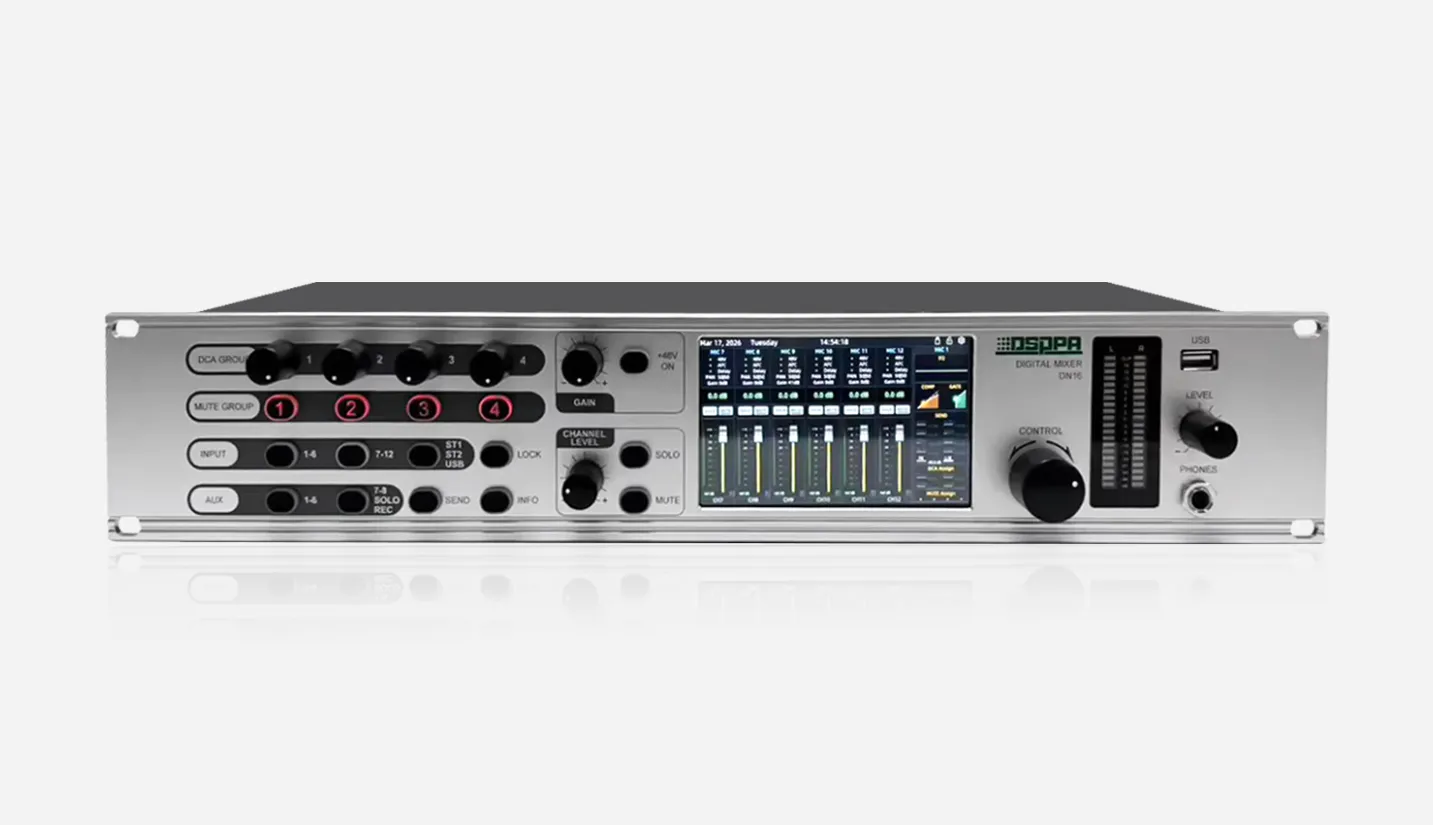

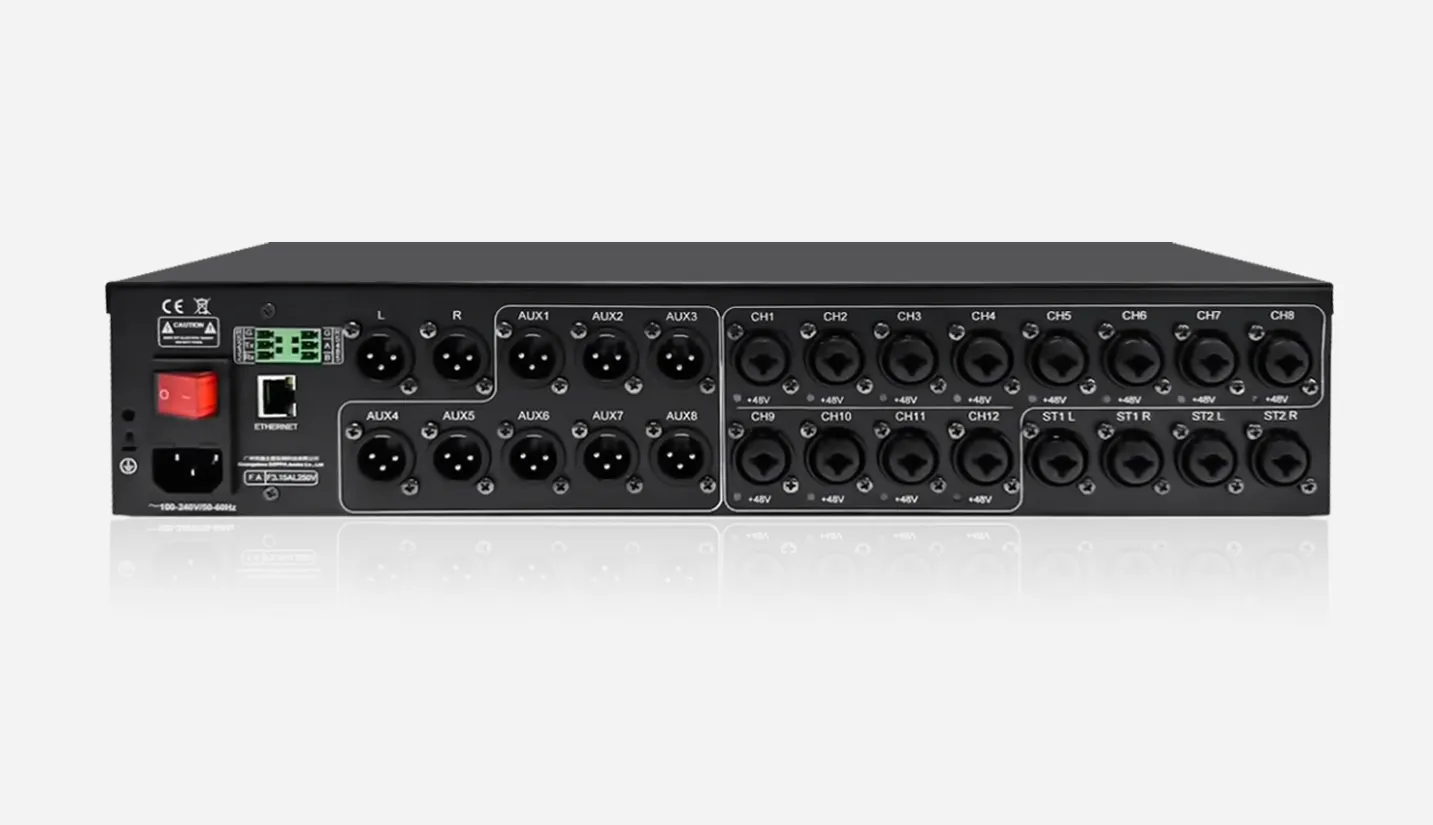

16-Channel Rack-mounted Digital Mixing Console - 翻译中... DN16

Mic/Line Input

Mic/Line Input

12 × XLR balanced inputs

Input Analog Gain

0 dB to 42 dB (1 dB steps)

Max. Input Level(XLR)

+18 dBu

Input Impedance(XLR, balanced)

2.4 kΩ

+48V Phantom Power

Support

Stereo Line Input

ST1 Input

XLR Balanced Connector

ST2 Input

XLR Balanced Connector

USB Input

USB Drive

Max. Input Level (ST)

+18dBu

Input Impedance (TRS/RCA)

2.4KΩ

Output

AUX1-8

XLR Balanced Connector

Main Output (L/R)

XLR Balanced Connector

Monitor Output

1/4 TRS

Output Impedance

100Ω

Frequency Response

20Hz-20KHz ±0.5dB

Sampling Rate

48KHz±100PPM

ADC/DAC

48 kHz / 24-bit

Distortion

<0.005% (20 Hz–20 kHz, 0 dB)

SNR (0 dB)

100 dB (A-weighted)

SNR (Max)

116 dB (A-weighted)

Dynamic Range

113 dB (A-weighted)

Input Processing

Input Source

Local CH1-CH8, ST1/2, USB

Equalizer

8-band Parametric EQ (20Hz-20KHz) ±10dB, Q Value 0.4-25

High/Low Pass Filter

12dB 20Hz-20KHz

Noise Gate

-90 dBu to -30 dBu

Attack/Release

0.07–512 ms / 45–3400 ms

Compressor

-36 dBu to +18 dBu

Ratio

1:1 to 1:16

Delay

Max 100 ms

Output Processing

Output Channels

8 AUX, 1 L/R, 1 SOLO, 1 REC

Delay

Max 500 ms

Equalizer

8-band parametric EQ (20 Hz–20 kHz, ±10 dB, Q  Value: 0.4–25); 31-band graphic EQ (20 Hz–20 kHz)

High/Low Pass Filter

Three types available: Butterworth, Bessel, and Linkwitz-Riley.

·Butterworth slopes: 6/12/18/24/30/36/42/48 dB/Oct

·Bessel slopes: 6/12/18/24/30/36/42/48 dB/Oct

· Linkwitz-Riley slopes: 12/24/36/42 dB/Oct

Control

Knob

Multi-functional push encoder

Display

5" IPS, 800×480

Grouping

Supported

Network

TCP / IP (Web Control)

Wired Control

Windows PC Web Control

USB

Driver

USB-A

Device

Supports One USB Storage Device (USB Flash Drive)

Stereo Recording

2 Channels , Wav 48KHz  24Bit

Stereo Playback

2 Channels (Wav, MP3, Flac, Apv, Ogg, etc.) 32-192KHz, 16-24Bit

System

Linux System

Power Supply

100V-240V AC，50-60Hz

Product Dimensions (H×W×D)

88×484×338mm
