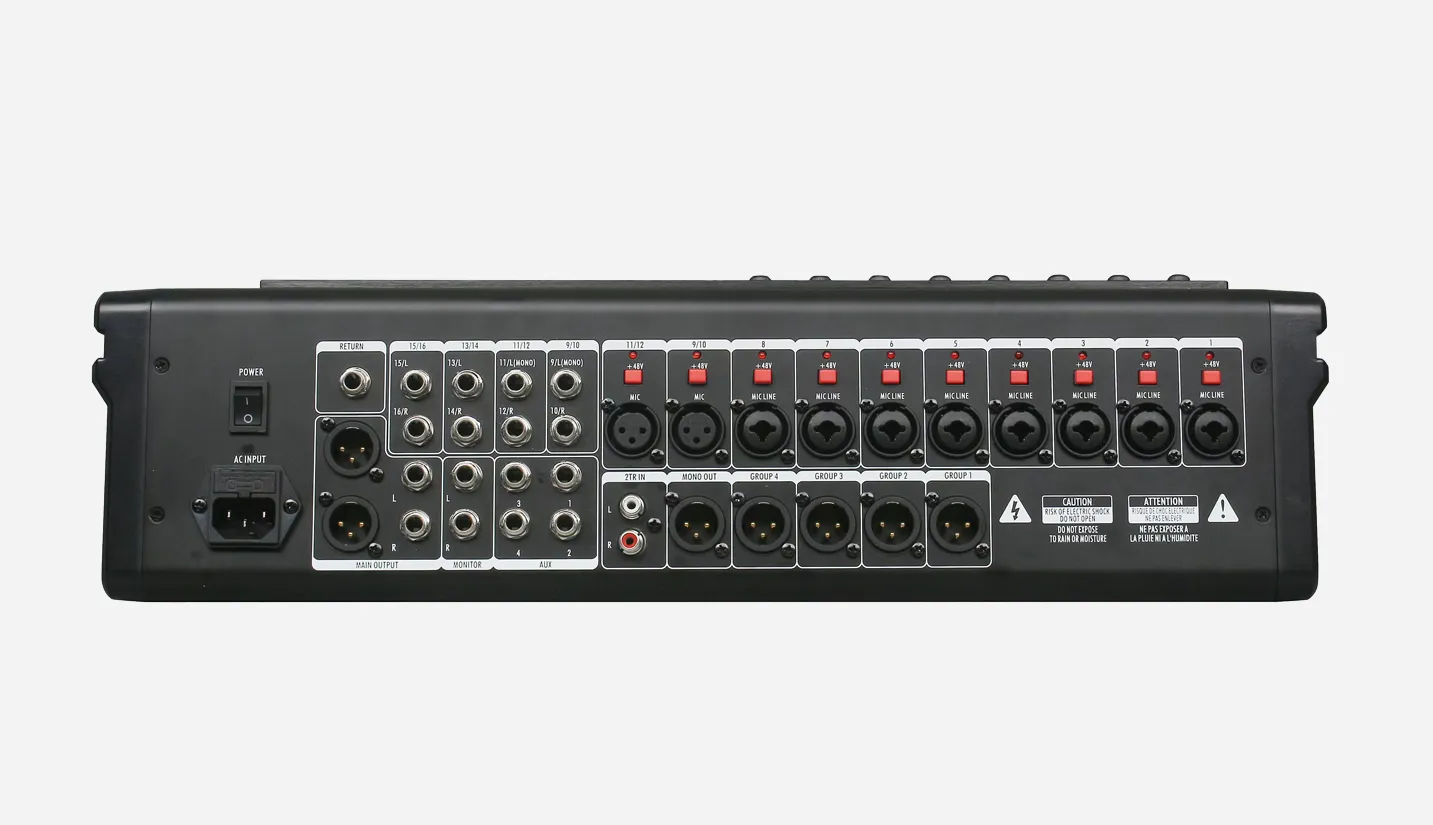

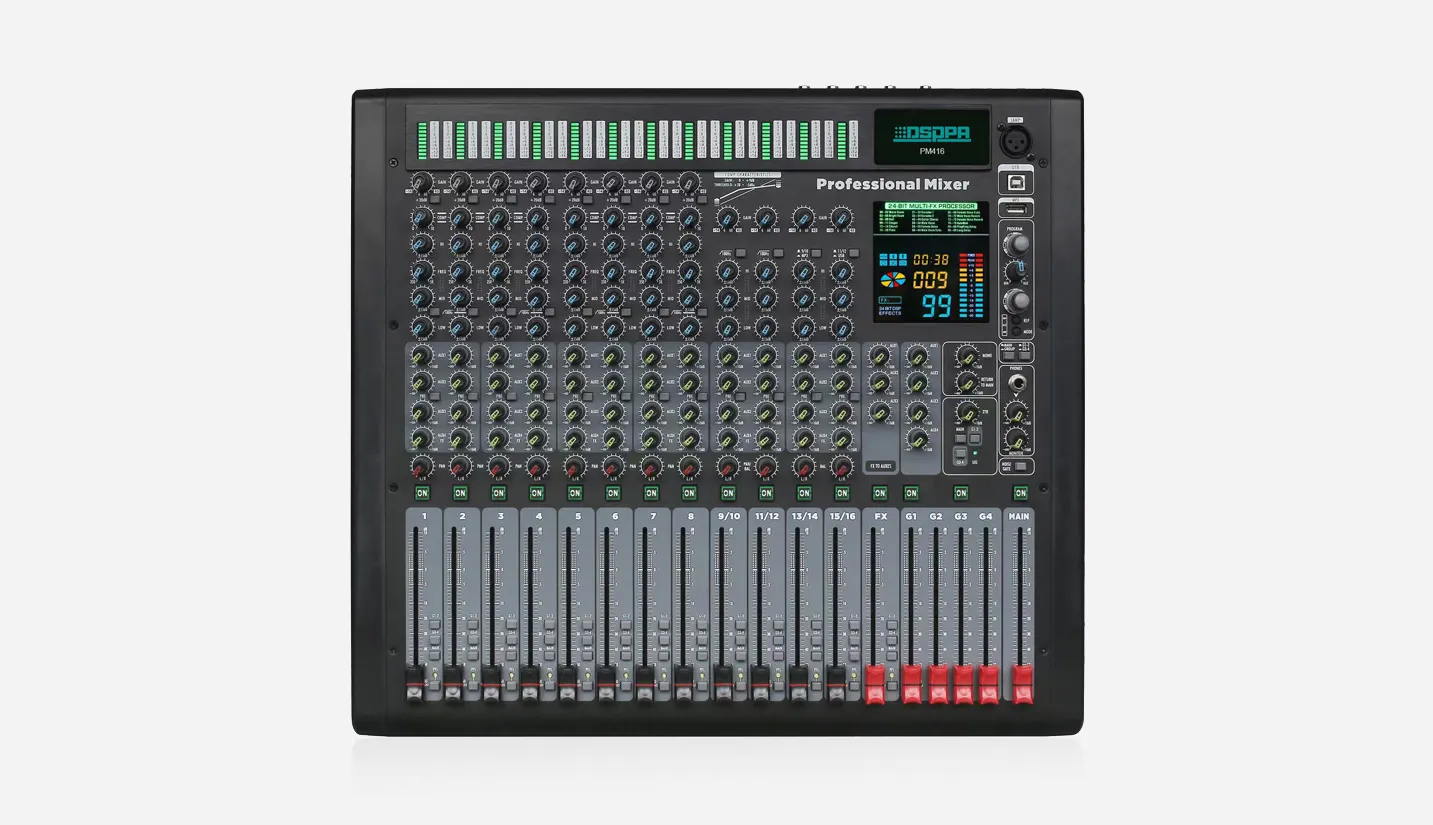

.webp "16-Channel 4-Group Bus Mixing Console - 翻译中...")
.webp "16-Channel 4-Group Bus Mixing Console - 翻译中...")
Model | PM412 | PM416 | PM424 |
Maximum Output Level | 13db | ||
Signal-to-Noise Ratio | ≥85dB (1MV IN 1V OUT) | ||
Total Harmonic Distortion | ≤0.02% @ 0dB 1KHz | ||
Frequency Response | 20Hz~20KHz±0.5dB | ||
Channel Crosstalk | <-75dB @ 1KHz | ||
MIC Input Impedance | 600Ω | ||
LINE Input Impedance | 10KΩ | ||
Output Impedance | 75Ω | ||
MIC IN | -60dB | ||
LINE IN | -40dB | ||
Stereo Input Impedance | 10KΩ | ||
Channel Gain Adjustment | -30dB | ||
3-Band EQ Adjustment Range | ±15dB | ||
HIGH Frequency | 12KHz | ||
MID Frequency | 120Hz–4KHz | ||
LOW Frequency | 80Hz | ||
Power Output | 45W | ||
Power Supply | 100V-240V/50Hz | ||
Package Dimensions (1 pc) | 510×240×530 (mm) | 618×240×530 (mm) | 820×240×530 (mm) |
Product Dimensions | 400×450×130 (mm) | 500×450×130 (mm) | 705×450×130 (mm) |
Gross Weight (1 pc) | 8kg | 10kg | 13kg |
Net Weight | 5.8kg | 7.1kg | 9.9kg |
