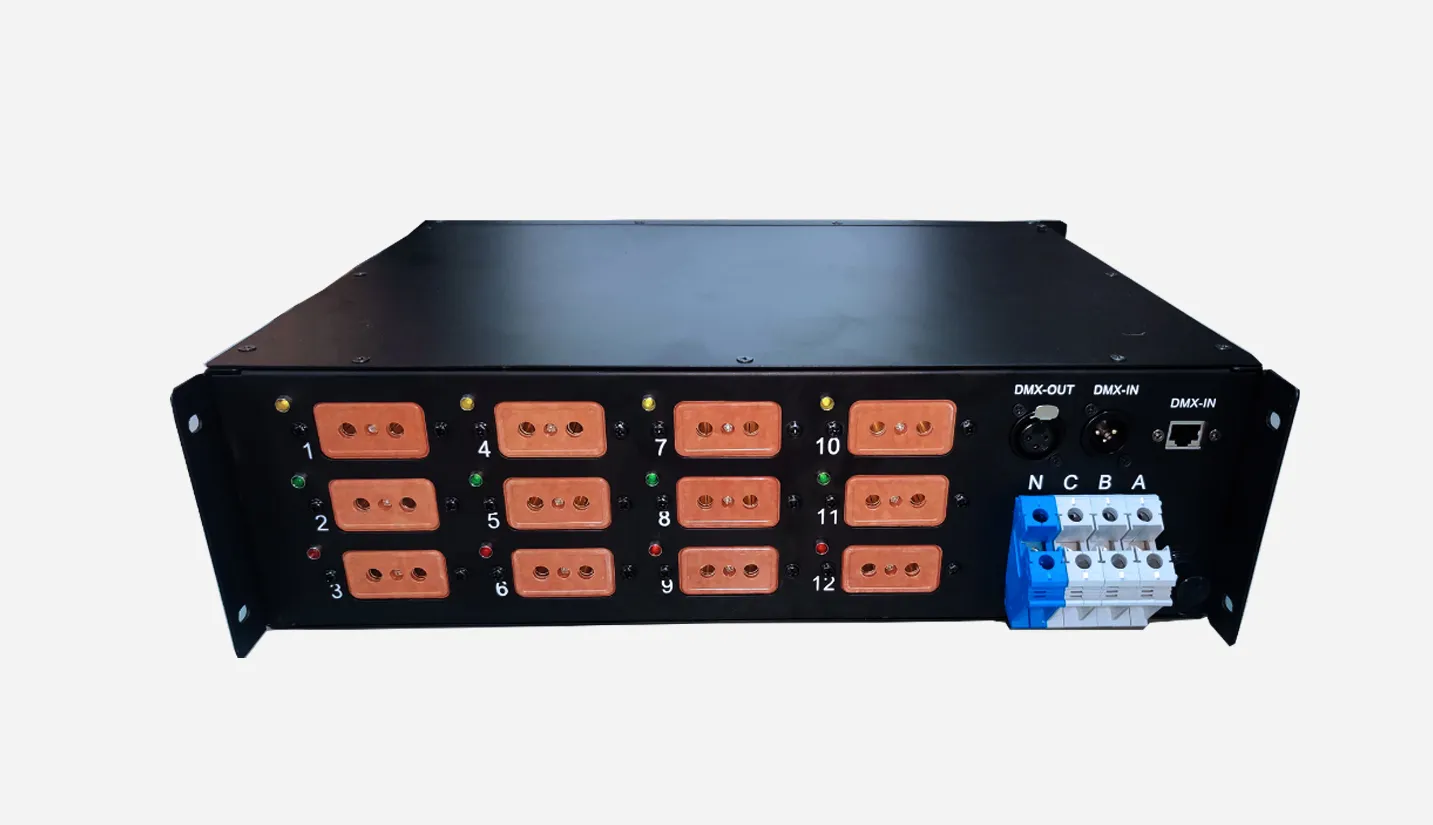

.webp "12-Channel Digital Power Distribution Box - 翻译中...")
Model | ZT1204DMX-P1 |
Channels | 12 |
Power Supply | Three-phase Four-wire AC380V ±10%, 50Hz ±5% |
Rated Power | 12× 4kW Per Channel |
Output Socket | 12 × 32A Bakelite Sockets |
Circuit Protection | Dual Overload and Short-circuit Protection, 12 × Delixi 1P C32 Breakers |
Input Terminal | 4P 35mm² UK Terminal |
Output Voltage | AC 220V per Channel |
Control | DMX512 Control with Network Interface |
Internal Wiring | Main Line 16mm², Branch Line 4mm² |
Signal Wiring | 128-Wire Shielded Cable for DMX Outputs |
Display | TTL LCD Color Screen |
Dimensions (L × W × H) | 485 × 367 × 124 mm |
